Display freezer
Cake display cabinet Air curtain airflow Display freezer Heat preservation and freshness preservation Width 90cm - 210cm
Product parameters

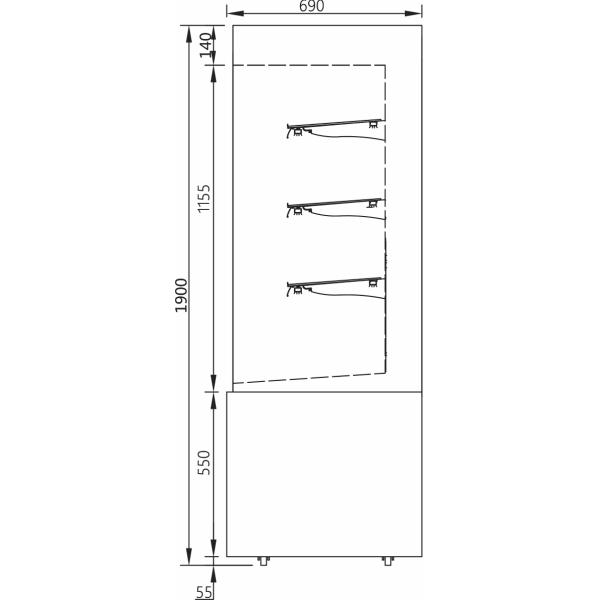

| Model | Power | Temperature | O.D | |
| ZFM-90A4 | 1150W | 5℃~10℃ | 90*69*190cm | |
| ZFM-120A4 | 1300W | 5℃~10℃ | 120*69*190cm | |
| ZFM-150A4 | 1600W | 5℃~10℃ | 150*69*190cm | |
| ZFM-180A4 | 1800W | 5℃~10℃ | 180*69*190cm | |
| ZFM-210A4 | 2300W | 5℃~10℃ | 210*69*190cm | |
Explanation of Environmental adaptability
This open-type air curtain cabinet is designed for a standard commercial environment and must meet the following usage conditions:
| Environmental Parameter | Technical Requirement | Risk Warning if Exceeded |
| Ambient Temperature | ≤25°C | High temperature may cause compressor overload and shutdown |
| Ambient Airflow Speed | ≤0.3 m/s | Excessive airflow disrupts air curtain barrier efficiency |
| Ambient Humidity | ≤60% RH | High humidity may cause condensation/short circuits |
| Floor Levelness | Tilt ≤3° | Uneven surfaces affect uniform airflow circulation |
Frequently Asked Questions (FAQ)
1. What happens if ambient temperature exceeds 25°C?
If it operates in an environment above 25℃ for a long time:
It will reduce the service life of the compressor and decrease the refrigeration efficiency by approximately 30%.
2. How to measure if ambient wind speed exceeds 0.3m/s?
Use a digital anemometer at a height of 1 meter above the ground.
Measure three points on the left/middle/right at a distance of 0.5 meters from the display cabinet.
Take the average reading when no one is walking.
3: Can it be used in outdoor semi-enclosed Spaces?
The standard model is not recommended for outdoor use.
4.How to solve the problem of condensation on glass doors?
Anti-condensation treatment methods:
Lower the humidity setting value inside the cabinet.
Improve the ventilation conditions of the store.
Check if the ambient wind speed exceeds 0.3m/s.
